Ipro Tech LFP Files

LFP files (also called load files) are the most common way to load images and related information into an IPRO project. Different LFP file commands perform different functions, from loading image files to setting volume locations to tagging images.

LFP files instruct Ipro View how to display a project’s images. Different commands in the LFP files provide:

  • The image’s file location, file type, boundary, and Bates number

  • The position, size, and color of redactions or highlights

  • The content of any information only fields

  • Any embedded text or sticky notes

  • The search words and their position on the image (if your project supports highlighted searching in Ipro View)

Important: You should load (import) LFP files into your projects at a time when no one is using the project.

How LFP Files are Created

Generally, the imaging vendor provides an LFP file upon completion of the imaging phase of a litigation project.

An LFP file can also be created by:

  • Converting a database

  • Using the optional Ipro Build module

  • Using Ipro-OCR or one of Ipro Tech's OCR partners to generate full-text search files

  • Using the Ipro Tech Utility program to export a project range or volume master

Command Line Structure

You can view and edit an LFP file using a text editor. Each record (or line) in the LFP file determines the action that line will perform. The sequence of the records in the file does not matter.

The commands in the LFP file take effect after you load or import the LFP file (Import > Import LFP File from the Ipro Tech Utility menu).

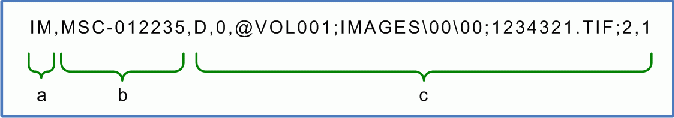

While the exact “anatomy” of each LFP file command differs according to the command’s purpose, each LFP file command has a few things in common:

  • The first two characters of any LFP file command indicate the command’s function. For example, the IO command loads information only field data for an image.
  • The first item (or “target”) following the command identifies the data that the command applies to. This is almost always an image key, but a few commands such as IN, “Create Issue Tag” are exceptions.
  • The following item or items supply the data to be applied to the image. For example, a BF, “Set Boundary” command identifies the boundary that you want to apply to the image.


The following paragraphs break down the parts of the LFP file command in more detail.

a. Command Function

Each record in an LFP file always starts with a 2-letter command. This example focuses on the IM or Load Image Master Record command.

b. Target or Item to Which the Command Applies

Because Ipro is an image-based system, most of the LFP commands provide a way to perform operations on images. The command can apply to a single image or to a range of images. In addition, a few LFP file commands operate on issue tags, image filenames, or volume names instead of image keys.

c. Data to be Applied

This portion of the LFP command can consist of one part or several. Other commands are much simpler. For example, the BF, Set Boundary command only contains one parameter following the image key: the Boundary Flag to apply to the image.

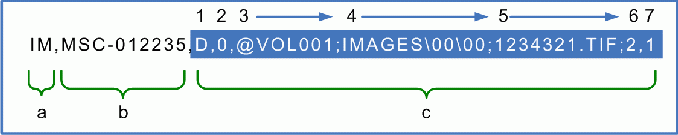

Command Line Parameters

The IM command discussed here has several parts or parameters, including the image’s boundary, its sequence in the image file, volume, path, filename, type, and rotation setting. While most items in the LFP file are separated by commas, some of the items in the IM Command are separated by semicolons (;).

The items highlighted in the drawing above are discussed below.

Command Parameters


1. Image Boundary Setting

The image boundary setting shows the image’s position in the image collection’s hierarchy. The sample here (D) indicates that the image is the first in a document. When defining the boundary structure for a new Ipro View project, make sure that you account for all of the boundary settings that you see in the LFP file. Examples of common boundary flags are S (source), B (box), F (folder), and C (child). Because Page is not actually a boundary setting, individual pages within a document (or child, etc.) do not contain a boundary flag. Instead you will see two consecutive commas to hold the place for the boundary flag so that the image will be correctly loaded by the Ipro Tech Utility program. The following command loads a page:


2. Image Sequence or Position

The image’s sequence or position in the image file will be zero if the image files are single-page Tiffs. For multiple-page image files, this parameter shows the image’s sequence or position in the file. For example, these commands load the first and second images in a file:


IM,MSC-01235, ,2,@VOL002;IMAGES00;123466.TIF;2,1

3. Image Volume

The volume the image is on. If the volume name is supplied, the drive letter is not necessary. The volume name can be up to 30 characters. The volume name is preceded by the at sign (@). The @ is actually not part of the volume name.

4. Image Path

The path to the image is next. If a volume name exists, the drive letter is not entered with the path. If there is no volume name, the drive letter and the complete path must be included.

5. Image File Name

The name of the file the image is in.

6. Image File Format

2=Standard single- and multiple-page black and white or color TIFF (.TIF)

3=Ipro Tech stacked TIFF (.STF)

4=Color image (.BMP, .PCX, .JPEG, or .PNG)

5=Black and white PDF

6=Color PDF

7=Auto-detect PDF


Note: There was another Image type, 1=Ipro Tech Internal Image (.IMG). This image type is no longer used.

7. Image Rotation

The rotation flag is the degree that a page is rotated. This setting is not present until the image has been rotated to the right. Values include:




3=270 (same as 90 degrees to the left)

Sample LFP File




IM,MSC-00004, ,0,@MDEMO;IMAGES\00\00;003.PDF;6


IM,MSC-00006, ,0,@MDEMO;IMAGES\00\00;006.JPG;4,0


IM,MSC-00008, ,0,@MDEMO;IMAGES\00\00;008.TIF;2,0

IM,MSC-00009, ,0,@MDEMO;IMAGES\00\00;009.TIF;2,0

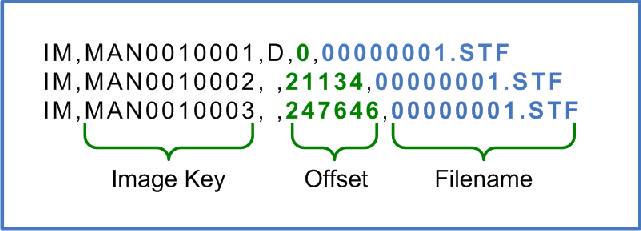

Example: Command for Stacked TIFF

The image load (IM) commands vary for different types of images. The example below lists the first three commands for Stacked Tiff (.STF) images produced by IPRO Premium Scan. Note that all three images are in the same file and that a numerical offset identifies where each image starts in the file. The numerical offset is shown in green and the filename is shown in blue in the example.

Supported File Types

Ipro supports Group 4 TIFF files, JPEG, PDF, PNG, PCX, BMP, and two internal formats: STF and IMG (no longer used).

Commands and Related Topics


Related Topic


Related Topic


Insert Comment Line (##)


Load Information Only Field Data (IO)


Change a Boundary (BF)


Apply a Tag to a Page (IS)


Apply a Higher Boundary to an Image (BM)


Assign Level Codes (LC)


Set Boundary Flags for a Range of Image Keys (BR)


Include OCR Text in the LFP File (OI)


Change an Image Key (CK)


Original File for EDD Image (OF)


Change the Date for an Image Key (DA)


Original Text (OT)


Remove All Tags from a Page (DT)


Remove a Single Page (RP)


Import Boundary Folder Descriptions (FD)


Remove a Range of Pages from a Project (RR)


Change an Image's Filename (FN)


Remove a Page Restriction (RS)


Full Text Highlight and Search Words (FT)


Remove a Tag from a Page (RT)


Append Data to Information Only Fields (IA)


Restrict a Page from Being Viewed (SR)


Import a New Page (IM)


Move an Image File to Another Volume (VF)


Create a New Issue Tag (IN)


Change the Location of a Volume (VN)
